12V Caravan Roof Vent – 14 Inch Manual Smoked Lid
$210.00
Order now for dispatch on Monday 21st September!64 in stock

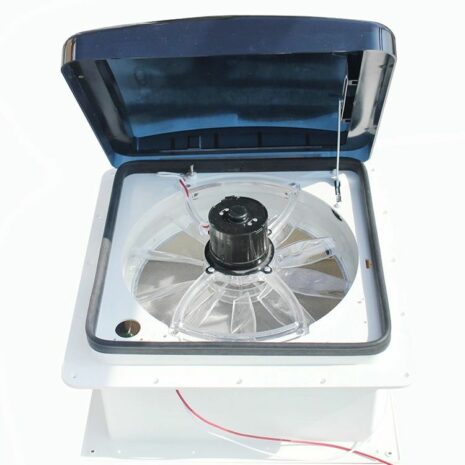

The 12V Caravan Roof Vent – 14 Inch Manual Smoked Lid from TRA Australia provides powerful, adjustable ventilation for caravans, RVs and motorhomes. Designed for a standard 14 × 14 inch roof opening, the TRA-RVM5000 features multi-speed reversible airflow with 2 intake speeds and 3 extraction speeds, a manually operated smoked lid, removable insect screen and airflow up to 25.76 m³/min.
Why Choose the TRA 12V Caravan Roof Vent?
| ✓ | Multi-Speed Reversible Airflow Choose from 3 extraction speeds (Low, Medium and High) or 2 intake speeds (Low and High), giving you flexible control over airflow in or out of your caravan or RV. |
| ✓ | High Airflow Performance Delivers up to 25.76 m³/min of airflow on high speed, providing effective powered ventilation for caravan and RV interiors. |
| ✓ | Standard 14 × 14 Inch Roof Opening Designed for a common 14 × 14 inch caravan and RV roof opening, making it suitable for new installations and compatible replacement applications. |

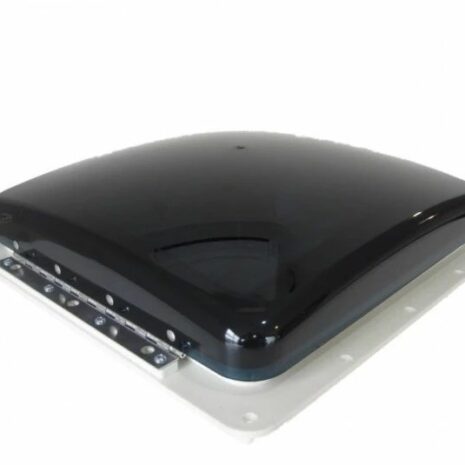

| ✓ | Manual Smoked Lid The manually operated smoked lid gives you direct control over opening and closing the roof vent while allowing natural light through the roof opening. |
| ✓ | Removable Insect Screen The insect screen helps keep insects outside and can be removed for easier cleaning and maintenance. |
| ✓ | Built-In Overload Protection Fuse An integrated fuse provides circuit protection for the roof vent’s electrical system. |
| ✓ | Trim-to-Suit Internal Garnish The 150 mm internal garnish can be trimmed to suit the required roof thickness and provide a neat interior finish. |
Technical Specifications
| Specification | Details |
|---|---|
| SKU | TRA-RVM5000 |
| Power Supply | 12V |
| Power | 18W |
| Current Draw | 1.6A on high speed |
| Roof Opening | 14 × 14 inch |
| Airflow Direction | Reversible – intake (IN) and extraction (OUT) |
| Extraction Speeds (OUT) | 3 – Low, Medium and High |
| Intake Speeds (IN) | 2 – Low and High |
| High-Speed Airflow | 25.76 m³/min |
| Medium-Speed Airflow | 18.28 m³/min |
| Low-Speed Airflow | 13.38 m³/min |
| Fan Speed | Up to 1200 RPM |
| Lid | Smoked, manual opening |
| Closed Height Above Roof | Approximately 110 mm |
| External Roof Flange | Approximately 418 × 418 mm |
| Internal Garnish Flange | Approximately 408 × 408 mm |
| Internal Garnish Height | Approximately 150 mm – trim to suit |
| Insect Screen | Removable for cleaning |
| Circuit Protection | Built-in overload protection fuse |
| Warranty | 1-year product warranty |
Ideal Applications
| What’s Included
|
Installation & Fitment
This 12V caravan roof vent is designed for a standard 14 × 14 inch roof opening. When replacing an existing roof vent, measure the actual roof opening, roof thickness and available mounting area before ordering rather than relying only on the nominal size of the existing vent.
The supplied internal garnish is approximately 150 mm high and is designed to be trimmed to suit the particular roof thickness. The installation manual also specifies that the lid hinge should face towards the front of the vehicle.
Important replacement fitment note: A matching 14 × 14 inch roof opening does not by itself guarantee direct replacement compatibility. Before replacing an existing roof vent, compare the opening, available mounting area, roof thickness, electrical requirements and surrounding clearances.
Important flange sealing note: During installation, the external plastic roof flange should be fully sealed and covered with a suitable compatible sealant, including the exposed flange surface and mounting screw areas. Leaving the plastic flange exposed to weather and UV over time can cause the plastic to become brittle and may result in cracking or breakage. Only use sealants compatible with the plastic flange and the vehicle roof surface.
Important installation note: TRA Australia recommends professional installation by an appropriately licensed installer. Warranty does not cover faults or damage resulting from incorrect installation, including water ingress, electrical damage or damage caused during installation.
💡 TRA Expert Tip
When replacing an existing 12V caravan roof vent, measure the actual roof opening before ordering. The TRA-RVM5000 uses the common 14 × 14 inch opening, but checking the opening, roof thickness, electrical supply and surrounding mounting space first can prevent compatibility problems during installation.
Installation Instructions & Operating Guide
View the installation instructions and operating guide for the TRA-RVM5000 caravan roof vent, including installation, wiring, fitment and operating information.
Frequently Asked Questions about the 12V Caravan Roof Vent
What size roof opening does the TRA-RVM5000 require?
Does this caravan roof vent have reversible airflow?
How many fan speeds does the TRA-RVM5000 have?
How much airflow does this 12V caravan roof vent provide?
Is the smoked lid manual or electric?
Can the insect screen be removed for cleaning?
Does the TRA-RVM5000 have electrical circuit protection?
Can the TRA-RVM5000 replace another 14 × 14 inch caravan roof vent?
Does the external plastic roof flange need to be sealed?
Should the TRA-RVM5000 be professionally installed?
Customer Images
Received goods very promptly
Thanks Phillip! We’re glad to hear your order arrived promptly. We appreciate your 5-star review and thank you for choosing TRA. Enjoy your new roof vent hatch! 😊🚐📦

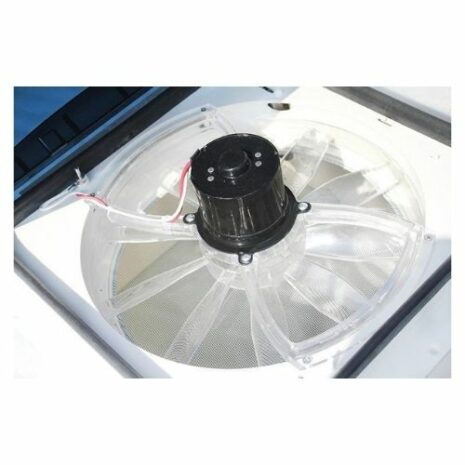

With the smoke tint and clear fan blades, it allows more light into the caravan bathroom
