5 Step Aluminium Collapsible Box Ladder

(42 customer reviews)

$170.00

Clock Icon Order now for dispatch on Tuesday 20th October!

24 in stock

SKU: TRA-BL5S Categories: ,

The TRA 5 Step Aluminium Collapsible Box Ladder is a lightweight, compact and sturdy portable ladder designed for caravans, RVs, motorhomes, camping and general access. Its clever collapsible design provides a practical 1410mm top rung height while folding down to a slim profile for easier storage and transport. Constructed from durable aluminium and weighing approximately 6.5kg, this 5 step box ladder combines increased access height with a 150kg maximum load rating, with a black carry bag included for convenient storage while travelling.

Why Choose the TRA 5 Step Box Ladder?

✓Compact Collapsible Design
Folds to a slim profile for easier storage in caravans, RVs, motorhomes, vehicles and garages.
✓1410mm Top Rung Height
Provides the greatest access height in the TRA 3, 4 and 5-step Box Ladder range for caravan, RV and general portable access applications.
✓150kg Maximum Load
Strong aluminium construction designed for dependable portable access.
✓Lightweight Aluminium Construction
Weighs approximately 6.5kg, giving you additional reach without the bulk of many conventional ladders.
✓Space-Saving Box Ladder Design
Provides useful additional height while collapsing into a narrow profile for storage and transport.
✓Carry Bag Included
Black carry bag included for convenient storage and transport.

5 Step Aluminium Box Ladder Specifications

SpecificationDetails
Ladder TypeCollapsible box ladder
Number of Steps5

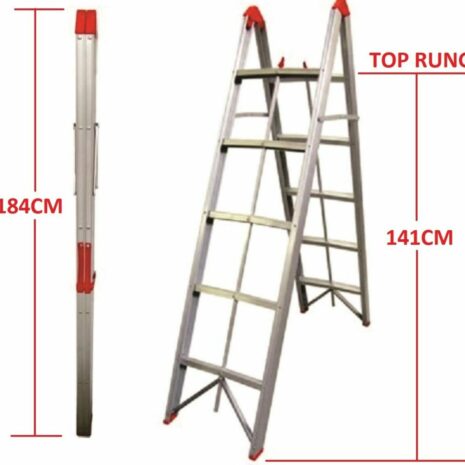

Top Rung Height1410mm
Overall Open Height1710mm
Open Dimensions450 × 1330 × 1710mm
Collapsed Dimensions1840 × 130 × 90mm
Maximum Load150kg
Net WeightApprox. 6.5kg
ConstructionAluminium
Carry BagIncluded – Black
Warranty1-year replacement warranty

Ideal Applications

✓Caravans & RVs
✓Motorhomes
✓Camper Trailers
✓Camping & Touring
✓Cleaning & Maintenance
✓General Portable Access

Storage & Transport

✓Slim collapsible design
✓1840 × 130 × 90mm collapsed size
✓Approx. 6.5kg net weight
✓Black carry bag included
✓Easy to carry and transport
✓Slim caravan & RV storage profile

Important safety note: Always place the ladder on a firm, level and stable surface. Ensure the ladder is fully opened and all steps are locked into position before climbing. Do not stand on the top rung or climb higher than the safe standing level specified on the ladder and in the supplied instructions. Do not exceed the 150kg maximum load rating, avoid overreaching and always follow the operating and safety instructions supplied with the ladder.

💡 TRA Expert Tip

The 5-step model is the tallest option in the TRA Box Ladder range and is best suited when you genuinely need the additional access height. Before ordering, compare the 1410mm top rung height with the task you need to complete. If a 3-step or 4-step model provides sufficient access, choosing the shorter ladder may give you a more compact storage option while travelling.

Find the Right Box LadderCompare TRA Australia’s 3, 4 and 5-step collapsible aluminium box ladders for caravans, RVs, camping and general portable access.View All Box Ladders

Frequently Asked Questions about the 5 Step Aluminium Box Ladder
Is the 5 Step Box Ladder suitable for caravans and RVs?
Yes. Its aluminium construction and slim collapsible design make the 5 Step Box Ladder well suited to caravans, RVs, motorhomes and camper trailers when greater portable access height is required.
How high is the top rung?
The top rung is approximately 1410mm from the ground when the ladder is correctly opened on a firm, level surface. The overall open height is approximately 1710mm. The top rung is not intended to be used as a standing position.
Can I stand on the top rung of the 5 Step Box Ladder?
No. Do not use the top rung as a standing position. Always observe the safe standing level specified on the ladder and follow the supplied operating and safety instructions.
What is the maximum load rating?
The maximum load rating is 150kg.
How much does the 5 Step Box Ladder weigh?
The ladder has a net weight of approximately 6.5kg, providing greater access height while remaining practical for portable use and travel.
How compact is the ladder when collapsed?
When collapsed, the ladder measures approximately 1840 × 130 × 90mm. Although it is longer than the 3-step and 4-step models, the narrow collapsed profile helps make storage easier in caravans, RVs, vehicles, garages and sheds.
Does the 5 Step Box Ladder fold out into a straight ladder?
No. The 5 Step Box Ladder is a collapsible A-frame style ladder and is not designed to extend or fold out into a straight ladder.
Is a carry bag included?
Yes. A black carry bag is included for convenient transport and storage.
Should I choose a 3, 4 or 5-step TRA Box Ladder?
Choose the ladder size according to the access height you genuinely require. The 3-step model is the most compact, the 4-step provides a balance between storage size and reach, and the 5-step model provides the greatest height in the range. Always choose a ladder that allows the intended task to be completed safely without excessive reaching.
What warranty is included?
The TRA 5 Step Aluminium Collapsible Box Ladder includes a 1-year replacement warranty.
