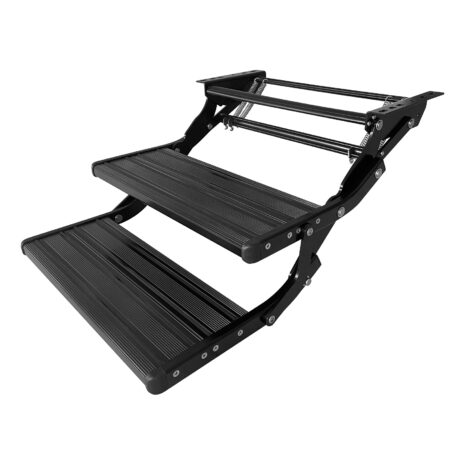

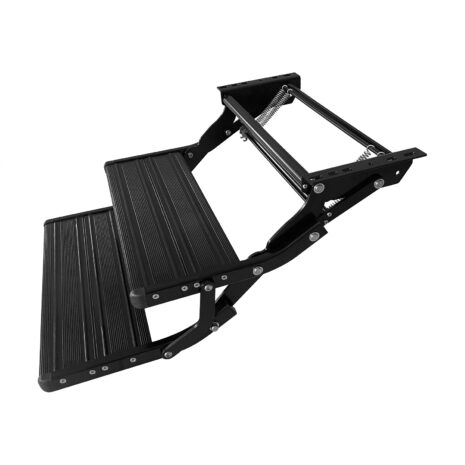

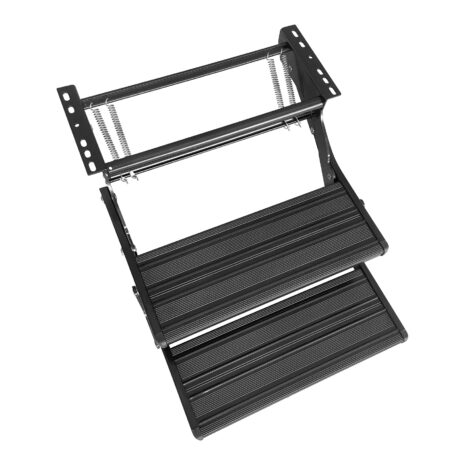

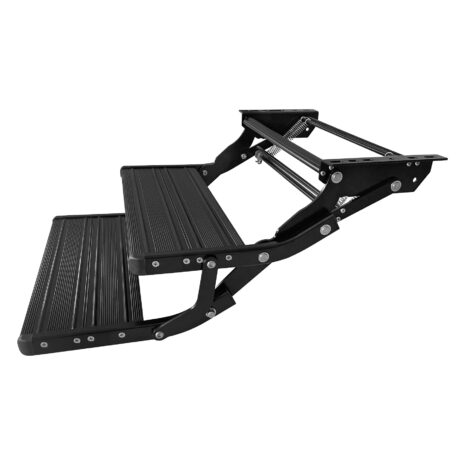

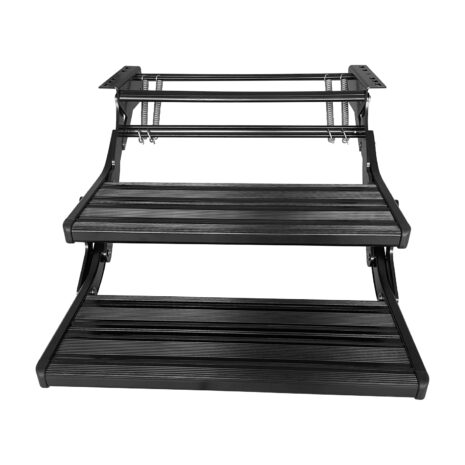

Black Double Manual Bolt-On Caravan Step

(6 customer reviews)

Original price was: $329.95.Current price is: $270.00.

18% OFF
Clock Icon Order within for dispatch Today!

177 in stock

SKU: TRA-DM545-BLACK Categories: , ,

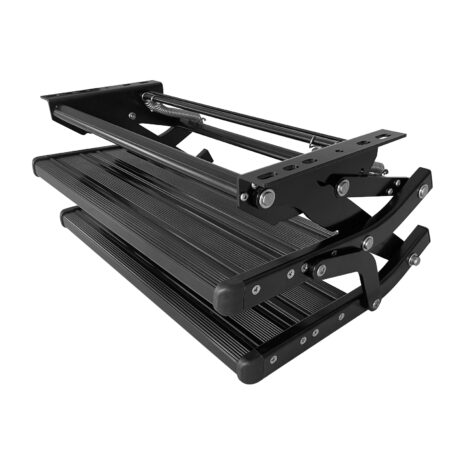

The Black Double Manual Bolt-On Caravan Step provides a strong, permanently mounted two-step entry solution for caravans, motorhomes, camper trailers and RVs. Quality tested to a 200kg load rating, this black double caravan step combines ribbed anti-slip treads, spring-loaded manual operation and illuminating step ends for practical everyday access.

Why Choose the Black Double Manual Bolt-On Caravan Step?

✓200kg Load Rating
Quality tested for strong, stable caravan and RV entry.
✓Double-Step Entry
Two treads provide easier access where a single caravan step does not provide enough drop.
✓Steel & Aluminium Construction
Combines strength and durability in a permanently mounted bolt-on design.
✓Ribbed Anti-Slip Treads
Provides secure footing when entering or exiting your caravan or motorhome.
✓Illuminating Step Ends
Helps improve step-edge visibility in low-light conditions without electrical wiring.
✓Spring-Loaded Manual Operation
Spring-loaded hinges assist with smooth manual opening and closing.
✓Black Finish
A clean black finish designed to complement modern caravan, motorhome and RV exteriors.
✓1-Year Manufacturing Defect Warranty
Backed by TRA Australia for added peace of mind.

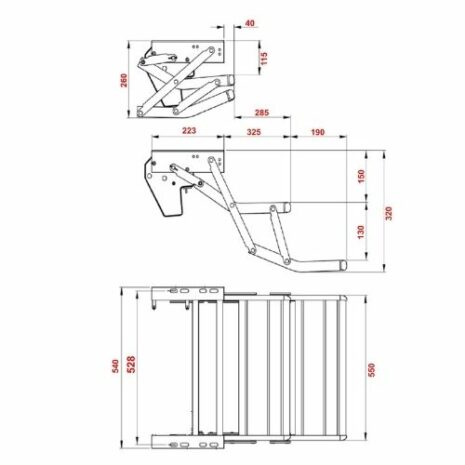

Black Double Manual Bolt-On Caravan Step Specifications

SpecificationDetails
SKUTRA-DM545-BLACK
Load Rating200kg
Weight8.5kg
Step Width545mm
Step Depth200mm

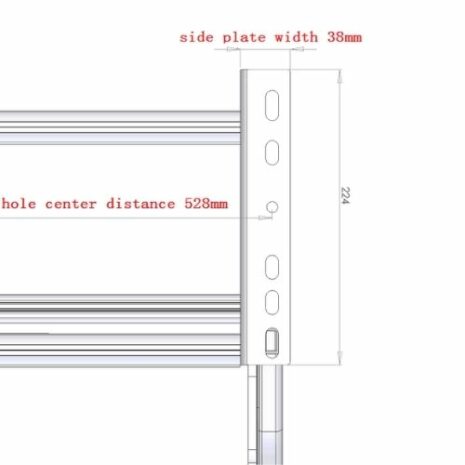

Mounting Hole Centres528mm
Mount Bracket Width555mm
Drop to First Tread150mm
Drop to Second Tread280mm
Overall Drop Height320mm

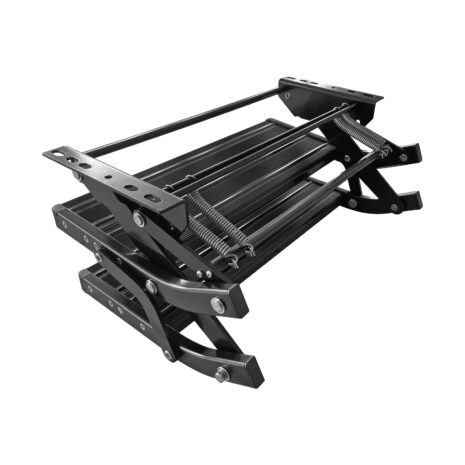

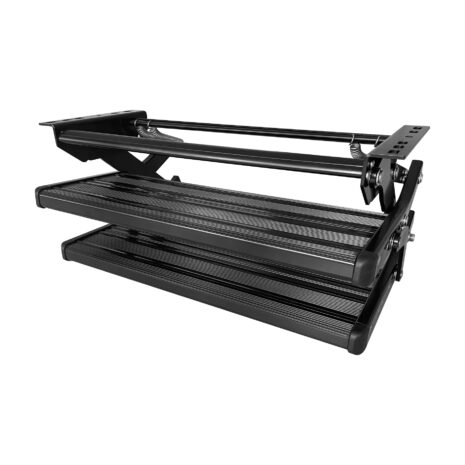

Height When Closed260mm
ColourBlack

Ideal Applications

✓Caravans
✓Motorhomes
✓Camper Trailers
✓Trailers
✓RV Fit-Outs

Installation & Fitment

✓528mm mounting-hole centres
✓545mm step width
✓150mm first-tread drop
✓280mm second-tread drop
✓Bolts and nuts not included
✓M8 galvanised bolts recommended

Important fitment note: A bolt length of approximately 50–60mm commonly suits many installations; however, the required length will vary depending on your caravan or RV chassis, mounting surface and individual setup.

💡 TRA Expert Tip

Before ordering, compare the 528mm mounting-hole centres, 545mm step width, 320mm overall drop and 260mm closed height with the available mounting area on your caravan or RV. The double-step design has a greater overall drop than a single step, so checking both ground clearance and entry height before installation is important.


Find the Right Caravan StepCompare TRA Australia’s manual, electric, portable, aluminium and steel caravan steps.View All Caravan Steps

Frequently Asked Questions about the Black Double Manual Bolt-On Caravan Step
What is the load rating of the Black Double Manual Bolt-On Caravan Step?
The step has been quality tested to a maximum load rating of 200kg.
Why choose a double caravan step instead of a single step?
A double caravan step provides two tread levels and a greater overall drop, making it suitable for installations where additional entry height needs to be covered.
Is this an electric caravan step?
No. This is a manually operated bolt-on caravan step with spring-loaded hinges to assist opening and closing.
Are mounting bolts and nuts included?
No. Mounting bolts and nuts are not supplied with the step. TRA Australia recommends M8 galvanised bolts for fitment. A bolt length of approximately 50–60mm commonly suits many installations, but the required length will vary depending on the vehicle, chassis, mounting surface and individual setup.
What are the mounting-hole centres?
The mounting-hole centres are 528mm. Check your available mounting area before ordering to confirm suitability for your installation.
How wide are the caravan steps?
The step width is 545mm, with each tread measuring approximately 200mm deep.
What are the tread drop heights?
The first tread drops approximately 150mm and the second tread approximately 280mm, with an overall drop height of 320mm.
Does the step have a non-slip surface?
Yes. Both treads feature a ribbed anti-slip surface designed to provide secure footing when entering or exiting your caravan, motorhome or RV.
Do the illuminating step ends require electrical wiring?
No. The illuminating step ends do not require electrical wiring and are designed to improve step-edge visibility in low-light conditions.
What warranty is included?
The Black Double Manual Bolt-On Caravan Step includes a 1-year manufacturing defect warranty.
