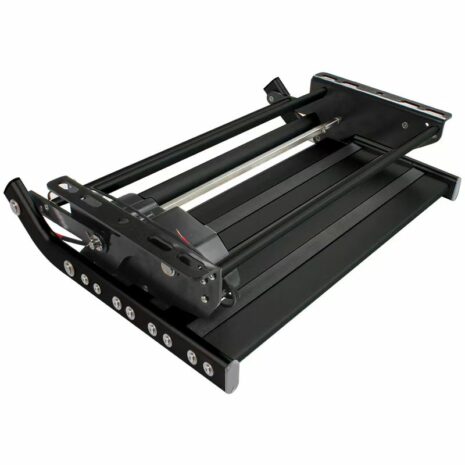

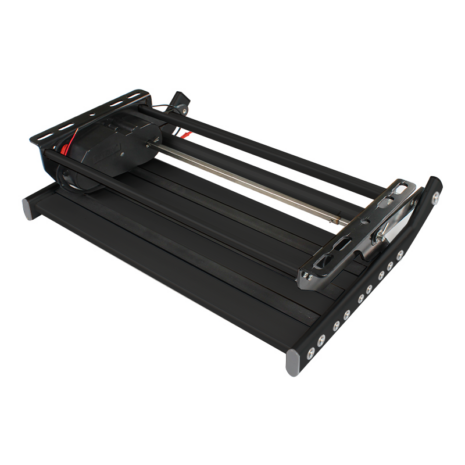

Black Single 12V Electric Caravan Step with LED Light
Original price was: $450.00.$415.00Current price is: $415.00.
Order within
for dispatch Today!31 in stock
The Black Single 12V Electric Caravan Step provides a convenient powered entry solution for caravans, motorhomes and RVs. Quality tested to a 200kg load rating, this black electric caravan step combines 12V motorised operation, a ribbed anti-slip tread and integrated LED lighting for practical day and night access.
Why Choose the Black Single 12V Electric Caravan Step?
| ✓ | 200kg Load Rating Quality tested for strong, stable caravan and RV entry. |
| ✓ | 12V Electric Operation Powered extension and retraction provides convenient access without manually folding the step in and out. |
| ✓ | Integrated LED Light A 6W LED light helps illuminate the step area in low-light conditions. |
| ✓ | Black Finish A clean black finish designed to complement modern caravan, motorhome and RV exteriors. |
| ✓ | Ribbed Anti-Slip Tread Provides a secure stepping surface for everyday caravan and motorhome access. |
| ✓ | Switch & Wiring Harness Included Supplied with an operating switch and wiring harness for installation. |
| ✓ | 1-Year Manufacturing Defect Warranty Backed by TRA Australia for added peace of mind. |
Black Single 12V Electric Caravan Step Specifications
| Specification | Details |
|---|---|
| SKU | TRA-SM-ELECTRIC-BLACK |
| Load Rating | 200kg |
| Weight | 6.9kg |
| Colour | Black |
| Voltage | 12V |
| Power | 120W |
| Current | 10A |
| LED Light | 6W |
| Step Width | 554mm |
| Mounting Hole Centres | 528mm |
| Depth When Closed | 131mm |
| Overall Drop When Open | 174mm |
| Drop to Tread | 160mm |
| Operating Switch | Included |
| Wiring Harness | Included |
Ideal Applications
| ✓ | Caravans |
| ✓ | Motorhomes |
| ✓ | Camper Trailers |
| ✓ | RV Fit-Outs |
| ✓ | Replacement Electric Step Installations |
Installation & Fitment
| ✓ | 528mm mounting-hole centres |
| ✓ | 554mm overall step width |
| ✓ | 131mm closed depth |
| ✓ | 174mm overall drop when open |
| ✓ | 12V electrical connection required |
| ✓ | Switch and wiring harness included |
Important fitment note: Always confirm the available mounting area, chassis clearance and electrical requirements before installation. The step requires a suitable 12V power supply and should be installed using mounting hardware appropriate for your caravan or RV chassis and mounting surface.
💡 TRA Expert Tip
Before ordering, compare the 528mm mounting-hole centres, 554mm overall width, 131mm closed depth and 174mm open drop with the available mounting area on your caravan or RV. Electric steps also require suitable clearance for the mechanism when retracting and extending, so checking for chassis obstructions before installation is important.
