Dual Arm Caravan TV Bracket with 2 Mounting Bases
$89.00
Order now for dispatch on Tuesday 20th October!213 in stock
The TRA Dual Arm Caravan TV Bracket with 2 Mounting Bases is an adjustable TV mounting solution designed for caravans, RVs and motorhomes where extra reach and positioning flexibility are required. Suitable for compatible TVs up to 24 inches and 15 kg, the articulated dual-arm design extends up to 400 mm and provides up to 180° swivel, 360° screen rotation and adjustable tilt. Two detachable mounting bases are included, allowing the TV and bracket to be moved between two suitable mounting locations.
Why Choose the TRA Dual Arm Caravan TV Bracket?
| ✓ | Dual-Arm Articulated Design Two articulated arm sections provide greater positioning flexibility and up to 400 mm of reach from the wall to the back of the TV. |
| ✓ | 2 Detachable Mounting Bases Move the TV and dual-arm bracket between two suitable mounting locations without needing a complete second TV bracket. |
| ✓ | Flexible Viewing Adjustment Provides up to 180° pan/swivel, 360° horizontal screen rotation and up to 14° tilt in all directions for flexible TV positioning. |
| ✓ | 400 mm Maximum Reach The dual-arm design extends up to 400 mm from the wall to the back of the TV when positioned perpendicular to the wall. |

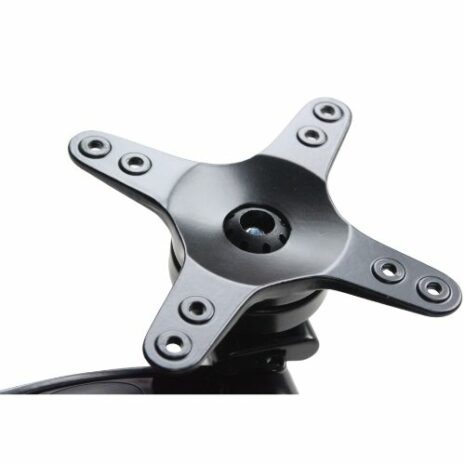

| ✓ | Removable TV Mount The TV mount can be detached from the bracket arm, making it easier to remove the television when required. |

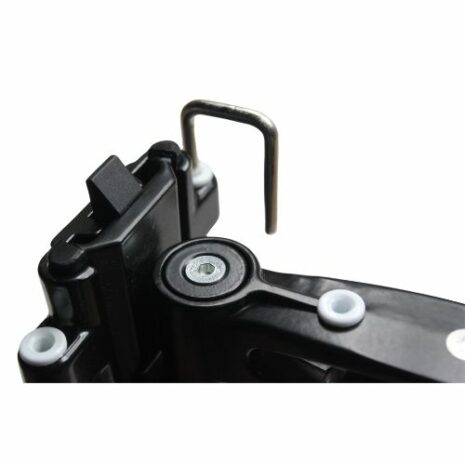

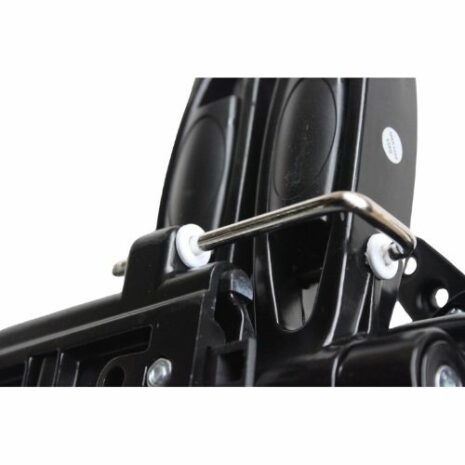

| ✓ | Transit Locking System The articulated arms can be folded and secured against the mounting plate using the integrated locking mechanism while the vehicle is in transit. |
| ✓ | Integrated Spirit Levels Both supplied mounting bases include an integrated spirit level to assist with accurate positioning during installation. |
| ✓ | Integrated Cable Management Cables can be routed along the dual-arm assembly beneath removable cable-management clips for a neater installation. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Dual arm caravan TV bracket |
| SKU | TRA-TVB02 |
| Recommended TV Size | Up to 24 inches |
| Maximum Load | 15 kg (33 lbs) |
| VESA Compatibility | 75 × 75 mm / 100 × 100 mm |
| Maximum Reach | 400 mm from wall to back of TV when bracket is perpendicular to wall |
| Tilt Range | Up to 14° in all directions |
| Pan / Swivel Range | Up to 180° |
| Horizontal Rotation | 360° |
| Mounting Bases | 2 detachable mounting bases with integrated spirit levels |
| Cable Management | Integrated cable routing and removable arm clips |
| Warranty | 1-year replacement guarantee |
Ideal Applications
| What’s Included
|
Installation & TV Compatibility
Before ordering, confirm that your TV weighs no more than 15 kg and uses a 75 × 75 mm or 100 × 100 mm VESA mounting pattern. The supplied hardware includes M4 × 12 mm and M4 × 20 mm TV mounting screws, with spacers and washers for compatible installations where required.
The mounting surface must be capable of supporting the combined weight of the TV and bracket. If the mounting structure is not sufficiently strong, it must be reinforced before installation. Always check for pipes, electrical wiring or other hazards before drilling.
Important safety note: The supplied set screw must be used to secure the TV mount to the bracket arm and help prevent movement or rattling. The installation instructions also recommend removing the TV from the wall bracket while the vehicle is in transit to protect the television from unnecessary vibration.
💡 TRA Expert Tip
Choose between the single and dual arm brackets based on how far the TV needs to move from its mounting position. The dual arm extends up to 400 mm compared with 255 mm for the TRA single arm bracket, making it particularly useful where the TV needs greater reach or more flexible positioning. Always confirm the TV’s weight and VESA mounting pattern before ordering.
Installation Instructions
Download the detailed installation and user manual for the TRA Dual Arm Caravan TV Bracket, including mounting-base installation, TV attachment, final assembly, cable management, adjustment, transit locking and safety information.
Frequently Asked Questions about the Dual Arm Caravan TV Bracket
What size TV does this dual arm caravan TV bracket suit?
What VESA mounting patterns does the bracket support?
How far does the dual arm TV bracket extend?
What is the difference between the TRA single and dual arm TV brackets?
Why are two mounting bases included?
How adjustable is the dual arm TV bracket?
Does the bracket include mounting hardware?
Can I remove the TV from the bracket?
Does the dual arm bracket lock for travelling?
