FLEXI 12V Caravan Roof Vent – Manual Built-In Rain Shield
Original price was: $360.00.$290.00Current price is: $290.00.
Order now for dispatch on Friday 11th September!39 in stock

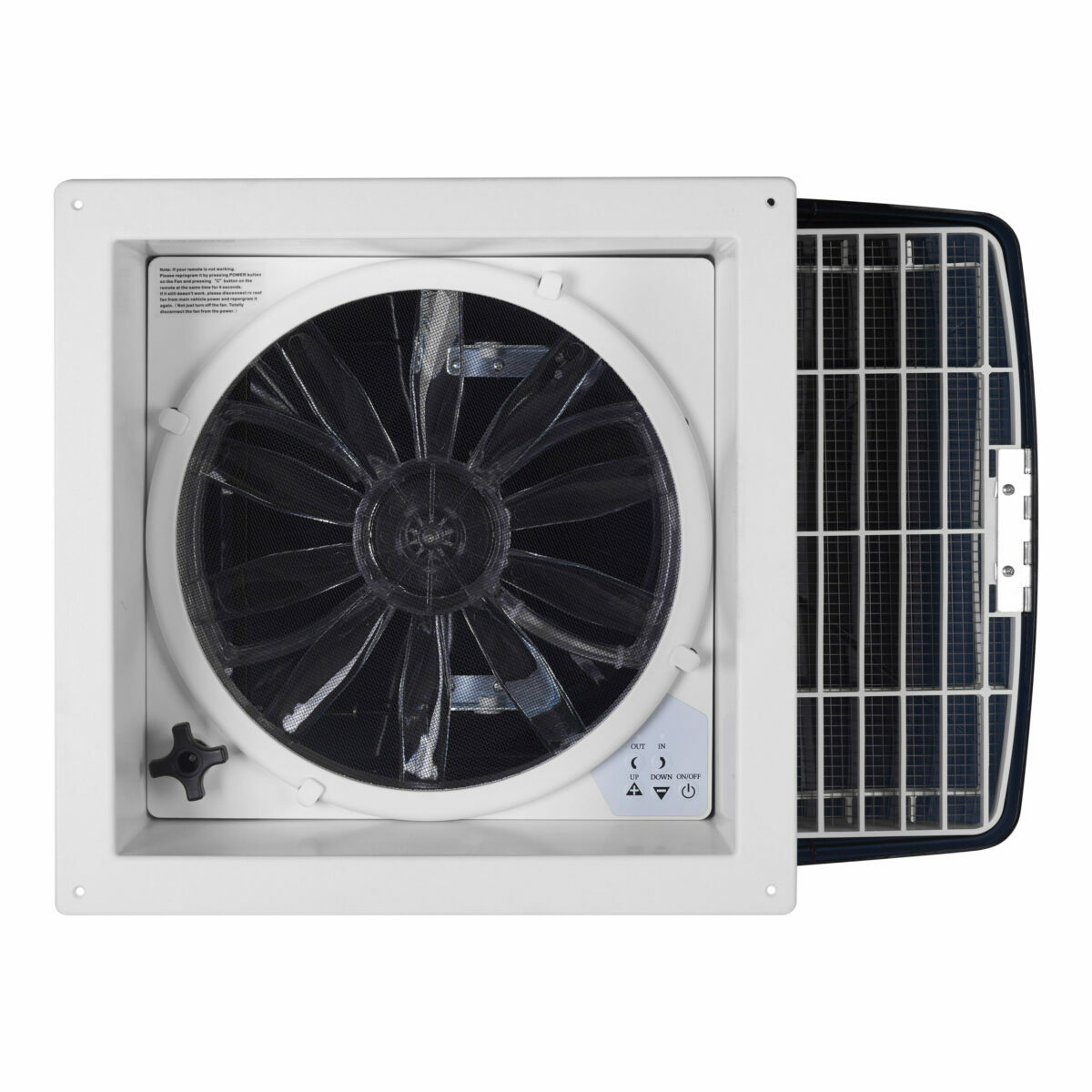

The 12V caravan roof vent TRA-RVM-FLEX from TRA Australia combines powerful reversible ventilation with a built-in rain shield for caravans, RVs and motorhomes. The variable-speed fan can be adjusted from 10% to 100% in both intake and extraction modes, while the manual lift lid, removable insect screen and integrated rain-shield design provide flexible ventilation in changing conditions.
Why Choose the TRA FLEXI 12V Caravan Roof Vent?
| ✓ | Built-In Rain Shield The integrated rain-shield design provides additional protection around the roof ventilation opening while allowing the FLEXI to provide practical ventilation in changing weather conditions. |
| ✓ | Variable-Speed Reversible Airflow Choose between intake (IN) and extraction (OUT), with fan speed adjustable from 10% to 100% for precise control over ventilation. |
| ✓ | Manual Lift Lid The roof vent lid is manually opened and closed using the internal control knob, giving you straightforward control over the roof opening. |
| ✓ | Removable Insect Screen The insect protection screen helps keep insects outside and can be removed to access the fan for cleaning and maintenance. |
| ✓ | Wide Roof Thickness Range Designed for roof thicknesses from 40–200 mm, with a 150 mm internal garnish that can be trimmed to suit the installation. |
| ✓ | 2-Year Product Warranty Backed by TRA Australia with a 2-year product warranty for additional confidence. |
Technical Specifications
| Specification | Details |
|---|---|
| SKU | TRA-RVM-FLEX |
| Power Supply | 12V DC |
| Power | 20W |
| Current Draw | 1.6A on high speed |
| Roof Cut-Out | 360 × 360 mm |
| Roof Thickness | 40–200 mm |
| Roof Section Size | 580 × 430 mm |
| Closed Height Above Roof | Approximately 130 mm |
| Airflow Direction | Reversible – intake (IN) and extraction (OUT) |
| Fan Speed Control | Variable – adjustable from 10% to 100% |
| Maximum Fan Speed | 1200 RPM |
| Lid Operation | Manual lift |
| Rain Protection | Built-in rain shield |
| Internal Garnish Height | 150 mm – trim to suit |
| Insect Screen | Removable for cleaning |
| Fuse | No built-in fuse |
| Weight | 8 kg |
| Warranty | 2-year product warranty |
Ideal Applications
| What’s Included
|
Installation & Fitment
This 12V caravan roof vent suits a 360 × 360 mm roof cut-out and roof thicknesses from 40–200 mm. The supplied internal garnish is 150 mm high and can be trimmed to suit the installation.
Important fitment note: Before ordering, check the actual roof cut-out, roof thickness, available exterior mounting area and electrical requirements. The FLEXI roof section measures approximately 580 × 430 mm, so sufficient clear roof space is required around the cut-out.
Important flange sealing note: During installation, the external plastic housing and mounting flange should be completely sealed and covered with a suitable compatible sealant. Leaving the plastic exposed to weather and UV over time can cause the plastic to become brittle and may result in cracking or breakage. Only use sealants compatible with the plastic flange and vehicle roof surface.
Important installation note: TRA Australia recommends professional installation by an appropriately licensed installer. Warranty does not cover faults or damage resulting from incorrect installation, including water ingress, electrical damage or damage caused during installation.
💡 TRA Expert Tip
The FLEXI is a strong choice when you want more precise ventilation control from your 12V caravan roof vent. Rather than being limited to a small number of fixed fan speeds, the control panel lets you adjust airflow from 10% through to 100% in either intake or extraction mode.
Installation Instructions & Operating Guide
View the installation instructions and operating guide for the TRA-RVM-FLEX 12V caravan roof vent, including installation, electrical connection, fan operation, fitment and maintenance information.
Frequently Asked Questions about the FLEXI 12V Caravan Roof Vent
What size roof cut-out does the FLEXI require?
Does the FLEXI provide both intake and extraction?
How many fan speeds does the FLEXI have?
Does the FLEXI have a built-in rain shield?
What roof thickness does the FLEXI suit?
Can the insect screen be removed for cleaning?
Does the FLEXI have a built-in fuse?
Does the external roof flange need to be completely sealed?
Should the FLEXI roof vent be professionally installed?
