Roof Mount Caravan TV Bracket for 17–37 Inch TVs
$109.00
Order now for dispatch on Tuesday 20th October!77 in stock

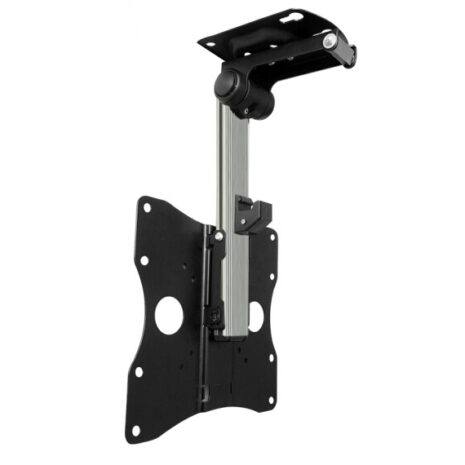

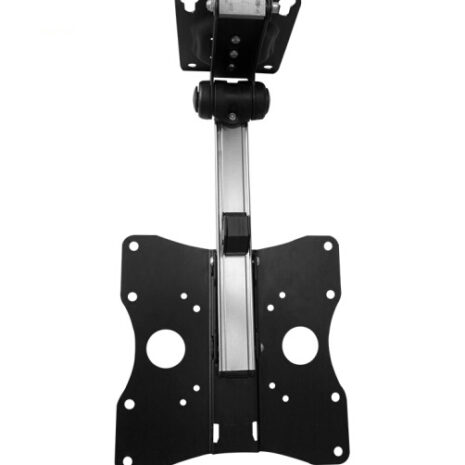

The TRA Roof Mount Caravan TV Bracket is designed for caravans, RVs and motorhomes where wall mounting is unsuitable or valuable wall space needs to remain clear. Designed for compatible 17–37 inch TVs, the bracket mounts overhead and features an adjustable 265–400 mm drop, a 90° folding mechanism and VESA compatibility from 75 × 75 mm through to 200 × 200 mm.
Why Choose the TRA Roof Mount Caravan TV Bracket?
| ✓ | Overhead TV Mounting Provides an alternative to wall mounting by suspending a compatible TV from a suitable overhead mounting structure. |
| ✓ | Adjustable 265–400 mm Drop The sliding vertical support allows the TV mounting position to be adjusted between approximately 265 mm and 400 mm from the overhead mounting plate. |

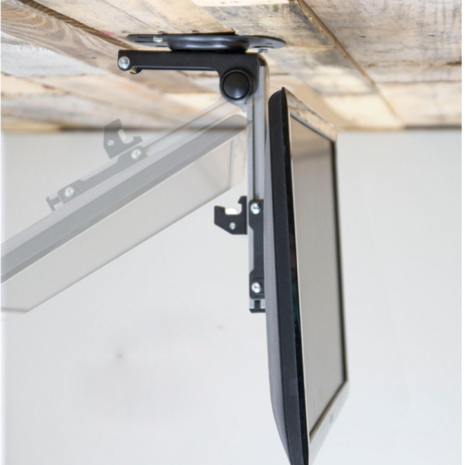

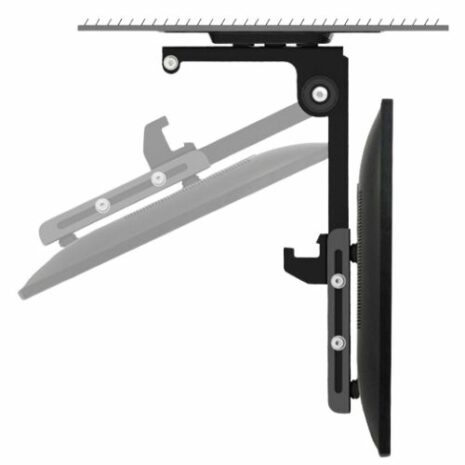

| ✓ | 90° Folding Mechanism The bracket incorporates a 90° folding mechanism at the overhead mounting point, allowing the assembly to move between its lowered and folded positions. |
| ✓ | Multiple VESA Mounting Patterns Supports compatible TVs with 75 × 75 mm, 100 × 100 mm and 200 × 200 mm VESA mounting patterns. |
| ✓ | Designed for 17–37 Inch TVs Suitable for compatible televisions within the recommended 17–37 inch screen-size range. |
| ✓ | Aluminium & Steel Construction Constructed using aluminium and steel components for a strong, practical mounting solution suited to caravan and RV applications. |

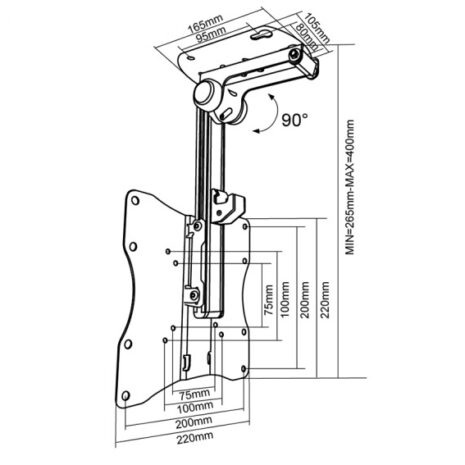

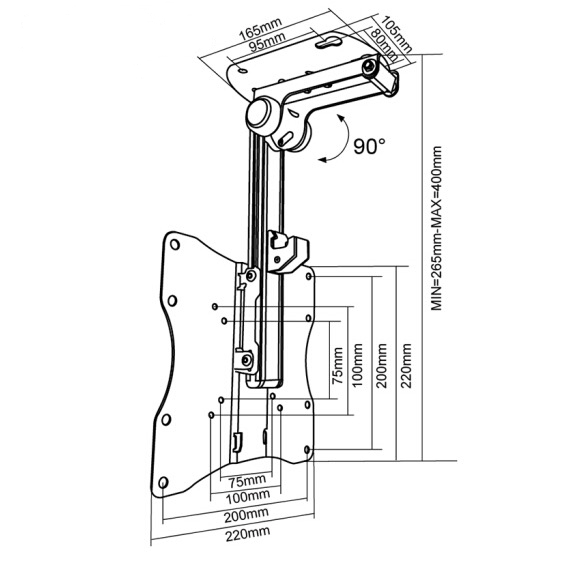

Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Roof / overhead mount caravan TV bracket |
| SKU | TRA-TVB-ROOF |
| Recommended TV Size | 17–37 inches |
| VESA Compatibility | 75 × 75 mm / 100 × 100 mm / 200 × 200 mm |
| Adjustable Drop | 265–400 mm |
| Folding Movement | 90° |
| Ceiling Mounting Plate | 165 × 105 mm |
| Mounting Hole Centres Shown | 95 × 60 mm |
| TV Mounting Plate | Up to approximately 220 × 220 mm |
| Construction | Aluminium and steel |
| Product Weight | Approximately 2 kg |
| Warranty | 1-year replacement guarantee |
Ideal Applications
| Key Fitment Checks
|
Installation & TV Compatibility
Before ordering, confirm that your TV is within the recommended 17–37 inch range and uses a compatible 75 × 75 mm, 100 × 100 mm or 200 × 200 mm VESA mounting pattern. Also check the available overhead clearance against the bracket’s adjustable 265–400 mm drop and 90° folding movement.
The overhead mounting structure must be capable of safely supporting the combined weight and forces of the TV and bracket. The appropriate fixing method will depend on the construction and reinforcement of the caravan, RV or motorhome.
Important fitment note: TRA does not recommend selecting mounting hardware based on the ceiling lining alone. The bracket must be secured to a suitable structural mounting point or reinforcement. If you are unsure about the structure, fixing method or installation, have the bracket fitted by a suitably qualified installer.
💡 TRA Expert Tip
Before drilling, check more than just the TV size. Confirm the VESA pattern, the strength and location of the overhead mounting structure, the 265–400 mm adjustable drop and the clearance required for the bracket’s 90° folding movement. Checking these measurements first can prevent fitment problems after installation has started.
Frequently Asked Questions about the Roof Mount Caravan TV Bracket
What size TV does the roof mount caravan TV bracket suit?
What VESA mounting patterns does it support?
How far does the bracket drop from the ceiling?
Does the roof mount bracket fold?
What size is the ceiling mounting plate?
Can I screw the bracket directly into the caravan ceiling lining?
Should I check the bracket dimensions before ordering?
