Triple Aluminium Manual Bolt-On Caravan Step
Original price was: $445.00.$399.00Current price is: $399.00.
Out of stock
The Triple Aluminium Manual Bolt-On Caravan Step provides a strong, permanently mounted three-step entry solution for caravans, motorhomes, camper trailers and RVs. Quality tested to a 150kg load rating, this triple caravan step combines lightweight aluminium treads, powder-coated steel support components, ribbed anti-slip surfaces and manual operation for practical everyday access.
Why Choose the Triple Aluminium Manual Bolt-On Caravan Step?
| ✓ | 150kg Load Rating Quality tested for strong, stable caravan and RV entry. |
| ✓ | Triple-Step Entry Three separate tread levels provide easier access where additional entry height needs to be covered. |
| ✓ | Aluminium Treads Lightweight aluminium tread sections provide a practical stepping surface while helping keep overall weight manageable. |
| ✓ | Powder-Coated Steel Support Structure Designed to provide strength and durability in a permanently mounted bolt-on configuration. |
| ✓ | Ribbed Anti-Slip Treads Provides secure footing in everyday caravan, motorhome and camper-trailer use. |
| ✓ | Manual Operation No electrical power is required for opening and closing the step. |
| ✓ | 1-Year Manufacturing Defect Warranty Backed by TRA Australia for added peace of mind. |

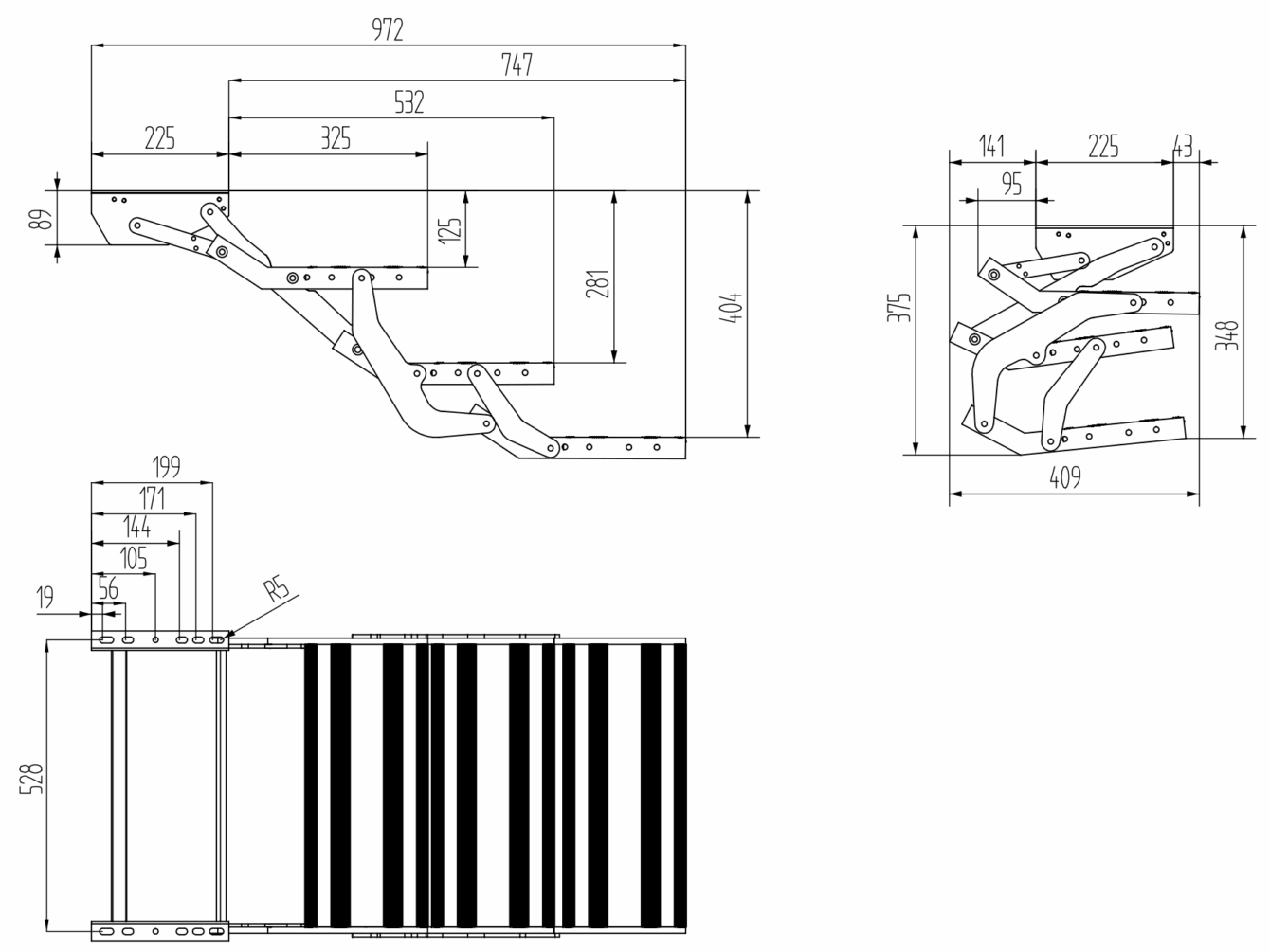

Triple Aluminium Manual Bolt-On Caravan Step Specifications
| Specification | Details |
|---|---|
| SKU | TRA-TM528 |
| Load Rating | 150kg |
| Weight | 13kg |
| Mounting Hole Centres | 528mm |
| Drop to First Tread | 125mm |
| Drop to Second Tread | 281mm |
| Drop to Third Tread | 404mm |
| Height When Closed | 375mm |
| Tread Material | Aluminium |
| Operation | Manual |
| Mounting Hardware | Bolts & Nuts Not Included |
Ideal Applications
| ✓ | Caravans |
| ✓ | Motorhomes |
| ✓ | Camper Trailers |
| ✓ | Trailers |
| ✓ | RV Fit-Outs |
Installation & Fitment
| ✓ | 528mm mounting-hole centres |
| ✓ | 125mm first-tread drop |
| ✓ | 281mm second-tread drop |
| ✓ | 404mm third-tread drop |
| ✓ | Bolts and nuts not included |
| ✓ | M8 galvanised bolts recommended |
Important fitment note: Mounting bolts and nuts are not supplied with this step. TRA Australia recommends M8 galvanised bolts for installation. A bolt length of approximately 50–60mm commonly suits many installations; however, the required length will vary depending on your caravan or RV chassis, mounting surface and individual setup.
💡 TRA Expert Tip
Before ordering this triple caravan step, compare the 528mm mounting-hole centres and 404mm overall third-tread drop with the available mounting area and entry height on your caravan or RV. Triple-step designs require more clearance than single or double steps, so checking both mounting space and ground clearance before installation is especially important.
