12V Caravan Shower Roof Vent with LED Lights – Tinted Lid 50-80mm
$155.00
Order within
for dispatch Today!99 in stock
The TRA 12V Caravan Shower Roof Vent with LED Lights – Tinted Lid combines multi-speed powered ventilation, integrated LED lighting and a manual-lift tinted lid in one compact unit. Designed for a 280 × 280 mm roof cut-out and thicker roofs from 50–80 mm, it provides reversible airflow with two intake speeds and three extraction speeds for caravan, RV and motorhome bathrooms, showers and other compact areas requiring powered ventilation.
Why Choose the TRA 12V Caravan Shower Roof Vent?
| ✓ | Multi-Speed Reversible Airflow Choose between two intake speeds to bring air inside or three extraction speeds to remove air from the caravan or RV. |
| ✓ | Designed for 50–80 mm Roof Thickness This model is designed for thicker caravan and RV roofs between 50 and 80 mm while retaining the common 280 × 280 mm roof cut-out. |

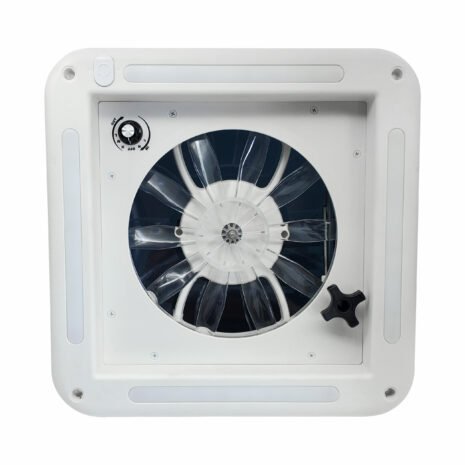

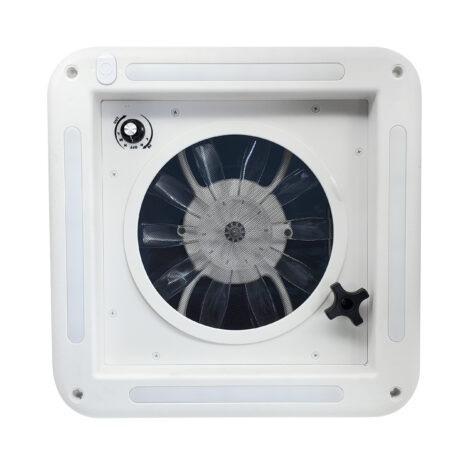

| ✓ | Integrated LED Light Garnish The internal garnish incorporates an 8W LED light surround with a separate switch, allowing the lighting to be operated independently from the ventilation fan. |
| ✓ | 280 × 280 mm Roof Cut-Out Designed to suit a 280 × 280 mm roof opening, making cut-out size and complete roof thickness the two key fitment measurements to confirm before ordering. |

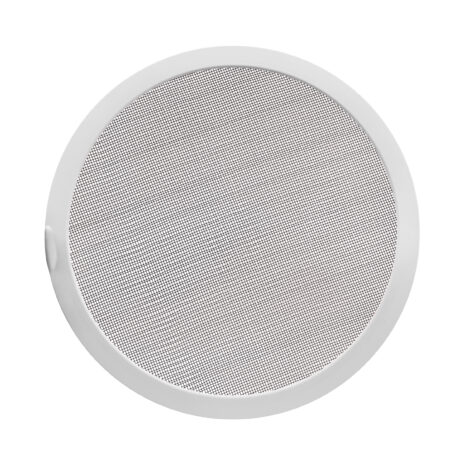

| ✓ | Removable Insect Screen The insect screen can be removed for cleaning, helping make ongoing maintenance more convenient. |

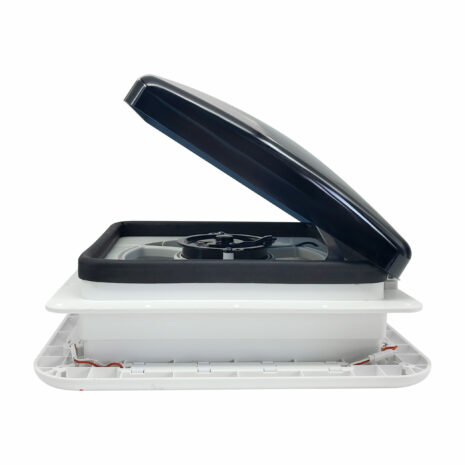

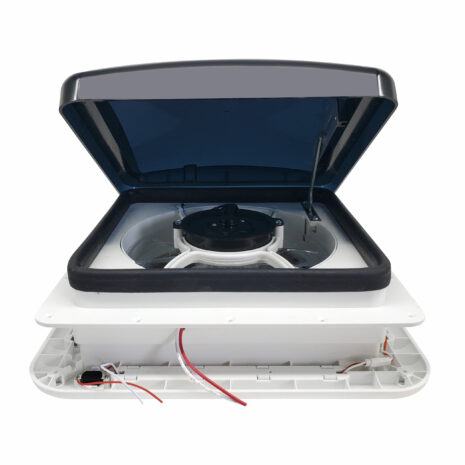

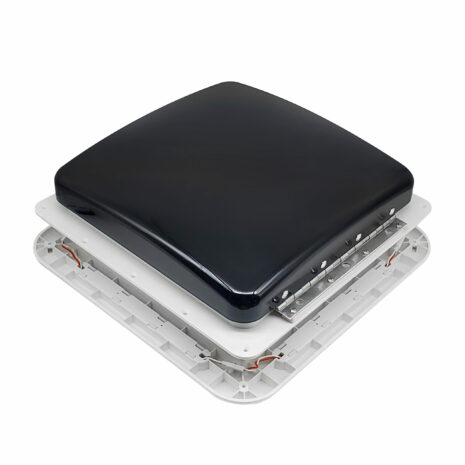

| ✓ | Manual-Lift Tinted Lid A manually operated tinted lid completes the roof vent while the 12V system powers the fan and integrated LED lighting. |
Product Specifications
| Specification | Details |
|---|---|
| SKU | TRA-SRV280-LED |
| Roof Cut-Out | 280 × 280 mm |
| Overall Dimensions | 340 × 340 mm |
| Suitable Roof Thickness | 50–80 mm |
| Power Supply | 12V |
| Airflow Operation | Reverse airflow – 2 intake speeds / 3 extraction speeds |
| High-Speed Fan Speed | 750 RPM |
| Motor Power | 14W / 1.2A |
| LED Light Power | 8W / 0.8A |
| Total Power Consumption | 2.0A |
| Lid | Tinted manual-lift lid |
| Closed Height Above Roof | 100 mm |
| LED Lighting | Integrated LED light surround with separate switch |
| Insect Screen | Removable for cleaning |
| Warranty | 1-year product warranty |
Ideal Applications
| Key Fitment Checks
|
Installation & Fitment
Before ordering, confirm that the installation requires a 280 × 280 mm roof cut-out and that the complete roof thickness is within this model’s 50–80 mm suitability range. The roof vent measures 340 × 340 mm overall and sits approximately 100 mm above the roof when the lid is closed.
This model incorporates a powered 12V ventilation fan and integrated LED lighting. Confirm that the electrical system is suitable for the specified load before installation.
Important installation note: TRA Australia recommends professional installation by an appropriately licensed installer. Warranty does not cover faults or damage resulting from incorrect installation, including water ingress, electrical damage or damage caused during installation.
💡 TRA Expert Tip
Although this model uses the same 280 × 280 mm cut-out as other TRA 11-inch roof vents, its 50–80 mm roof-thickness range is an important difference. Measure the complete roof thickness before ordering rather than choosing a replacement based on the cut-out size alone.
Strong and sturdy unit.
Operating instructions are light on
Haven’t installed at this point, however looks to be a good unit.
