12V Caravan Shower Roof Vent with LED Lights – Tinted Lid 25–65mm
Original price was: $170.00.$153.00Current price is: $153.00.
Order now for dispatch on Tuesday 20th October!29 in stock
The TRA 12V Caravan Shower Roof Vent with LED Lights – Tinted Lid provides powered intake and extraction ventilation with integrated LED lighting for caravan, RV and motorhome bathrooms and showers. Designed for a 280 × 280 mm roof cut-out and roof thicknesses from 25–65 mm, this model features single-speed reversible airflow, a manual-lift tinted lid and built-in insect screen.
Why Choose the TRA 12V Caravan Shower Roof Vent?
| ✓ | Two-Way Powered Ventilation Single-speed intake and extraction operation allows the fan to either bring air into the caravan or RV or extract air from inside. |

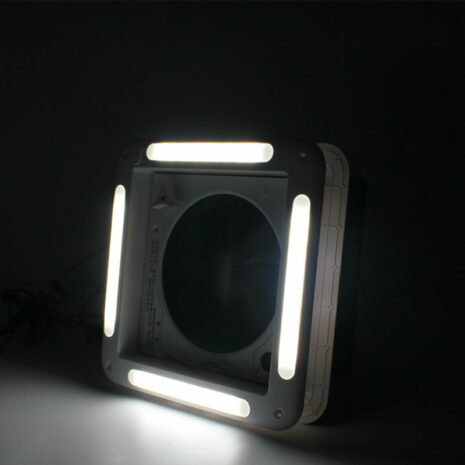

| ✓ | Integrated LED Light Garnish An 8W LED light surround is incorporated into the bottom garnish, combining interior lighting and ventilation in one roof-mounted unit. |

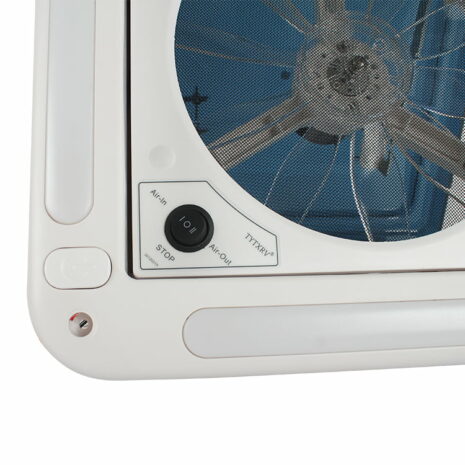

| ✓ | Separate LED Light Switch The integrated LED lighting has a separate on/off switch, allowing it to be operated independently from the ventilation fan. |
| ✓ | 25–65 mm Roof Thickness Designed for a 280 × 280 mm roof opening with a complete roof thickness between 25 and 65 mm. |
| ✓ | Tinted Manual-Lift Lid The manually operated tinted lid provides UV protection while giving the exterior of the roof vent a darker finish. |
| ✓ | Built-In Insect Screen A fixed insect screen is incorporated into the roof vent to help prevent insects entering through the ventilation opening. |
Product Specifications
| Specification | Details |
|---|---|
| SKU | TRA-SRV-LED |
| Roof Cut-Out | 280 × 280 mm |
| Overall Dimensions | 360 × 360 mm |
| Suitable Roof Thickness | 25–65 mm |
| Power Supply | 12V |
| Airflow Operation | Single-speed intake and single-speed extraction |
| Motor | 5W / 0.4A |
| LED Light | 8W / 0.8A |
| Total Current | 1.2A |
| Lid | Tinted manual-lift lid |
| Closed Height Above Roof | 85 mm |
| LED Lighting | Integrated LED light surround with separate switch |
| Insect Screen | Built-in, non-removable |
| Warranty | 1-year product warranty |
Ideal Applications
| Key Fitment Checks
|
Installation & Fitment
Before ordering this 12V caravan shower roof vent, confirm a 280 × 280 mm roof cut-out and a complete roof thickness between 25 and 65 mm. The unit measures 360 × 360 mm overall and the closed lid sits approximately 85 mm above the roof line.
The roof vent incorporates a 12V powered ventilation motor and integrated LED lighting. Confirm that the vehicle’s electrical system is suitable for the specified electrical load before installation.
Important installation note: TRA Australia recommends professional installation by an appropriately licensed installer. Warranty does not cover faults or damage resulting from incorrect installation, including water ingress, electrical damage or damage caused during installation.
💡 TRA Expert Tip
Several TRA 11-inch roof vents use the same 280 × 280 mm cut-out but suit different roof thicknesses and have different fan, lid and screen configurations. For this model, confirm the complete roof thickness is between 25 and 65 mm rather than selecting a replacement by cut-out size alone.
Frequently Asked Questions about the 12V Caravan Shower Roof Vent
What roof cut-out does this shower roof vent require?
What roof thickness does this model suit?
Does the fan provide both intake and extraction airflow?
Does this roof vent include LED lighting?
Can the insect screen be removed?
Is the tinted lid electrically operated?
How much electrical current does the roof vent use?
Should this roof vent be professionally installed?
