12V Caravan Shower Roof Vent with LED Lights – White Lid
$145.00
Order now for dispatch on Tuesday 20th October!80 in stock
The 12V Caravan Shower Roof Vent with LED Lights – White Lid from TRA Australia combines powered ventilation, a manual-lift white lid and integrated interior lighting in one compact unit. Designed for a 280 × 280 mm roof cut-out and roof thicknesses from 25–60 mm, it provides two-way intake and exhaust airflow for caravan, RV and motorhome bathrooms, showers and other compact areas requiring powered ventilation.
Why Choose this 12V Caravan Shower Roof Vent?
| ✓ | Two-Way Powered Ventilation The 12V fan provides both intake and exhaust operation, allowing air to be drawn into or extracted from the caravan or RV. |
| ✓ | Integrated LED Light Garnish Built-in LED lighting around the internal garnish provides useful interior lighting without requiring a separate light fitting around the roof vent. |
| ✓ | Separate LED Light Switch The LED lighting has its own switch, allowing the light to be operated separately from the roof vent fan. |
| ✓ | 280 × 280 mm Roof Cut-Out Designed to suit a 280 × 280 mm roof opening and roof thicknesses between 25 and 60 mm. |

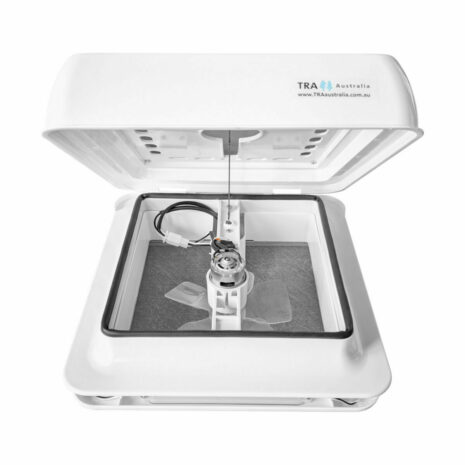

| ✓ | Built-In Insect Screen A built-in removable insect screen helps prevent insects entering through the roof vent while maintaining ventilation. |

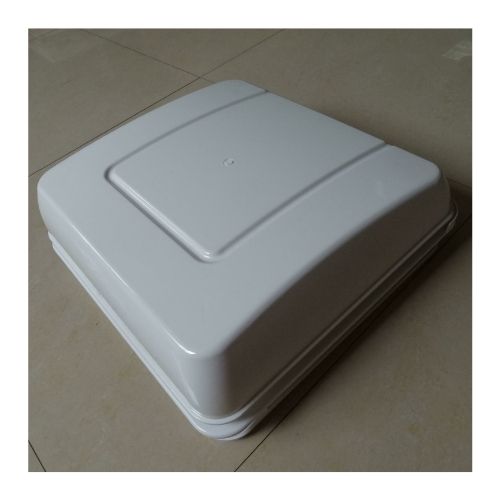

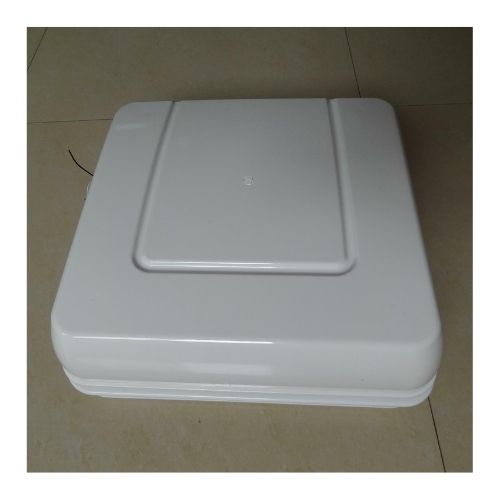

| ✓ | Manual-Lift White Lid The roof vent uses a manually operated white lid, keeping operation straightforward while the fan provides powered airflow. |
Product Specifications
| Specification | Details |
|---|---|
| SKU | TRA-RVM280-WHITE |
| Roof Cut-Out | 280 × 280 mm |
| Overall Dimensions | 364 × 372 mm |
| Suitable Roof Thickness | 25–60 mm |
| Voltage | 12V |
| Power | 3.6W |
| Airflow | 6 m³/min |
| Fan Speed | 1000 RPM |
| Airflow Direction | Two-way intake and exhaust |
| Lid | White manual-lift lid |
| Closed Height Above Roof | 95 mm |
| LED Lighting | Integrated LED light garnish with separate switch |
| Insect Screen | Built-in, removable |
| Warranty | 1-year warranty |
Ideal Applications
| What’s Included
|
Installation & Fitment
Before ordering, confirm that the installation requires a 280 × 280 mm roof cut-out and that the complete roof thickness is within the vent’s 25–60 mm suitability range. Also allow for the vent’s overall dimensions and approximately 95 mm height above the roof when the lid is closed.
As this model incorporates a 12V powered fan and LED lighting, the electrical installation must also be suitable for the unit and completed correctly.
Important installation note: TRA Australia recommends professional installation by an appropriately licensed installer. Warranty does not cover faults or damage resulting from incorrect installation, including water ingress, electrical damage or damage caused during installation.
💡 TRA Expert Tip
When replacing an existing 11-inch roof vent, don’t rely on the 280 × 280 mm cut-out alone. This model suits roof thicknesses from 25–60 mm, so measure the complete roof thickness before ordering. Also check that the 12V electrical supply and available roof clearance suit the installation.
Frequently Asked Questions about the 12V Caravan Shower Roof Vent
What roof cut-out does this shower roof vent require?
What roof thickness does the vent suit?
Can the fan bring air in as well as extract air?
Does the roof vent include LED lights?
Does the roof vent have an insect screen?
Is the white lid powered?
Should this roof vent be professionally installed?
[Sassy_Social_Share title=”SHARE THIS PRODUCT”]
Was easy to install and exactly what we needed for the shower in the caravan.
Thanks Anna! We’re so glad to hear the vent was easy to install and a perfect fit for your caravan shower — sounds like it worked out just right!
Exactly as described
Thanks, Troy! We’re happy the 12V shower roof vent with LED lights met your expectations.
Exactly what we ordered
Thanks, Lance! Glad to hear the shower roof vent was just what you needed!
